TL;DR

Someone is already doing this!

Intro

I saw a podcast on the beach and luckily, this exists: https://github.com/diodeinc/pcb

• https://fossengineer.com/pcb-zener-kicad/
• https://fossengineer.com/pyspice-python-circuit-simulation/

Dron electronics

• https://github.com/betaflight/betaflight-configurator/releases

choco install betaflight-configurator

Oh wait!

Now its a pwa: https://app.betaflight.com/

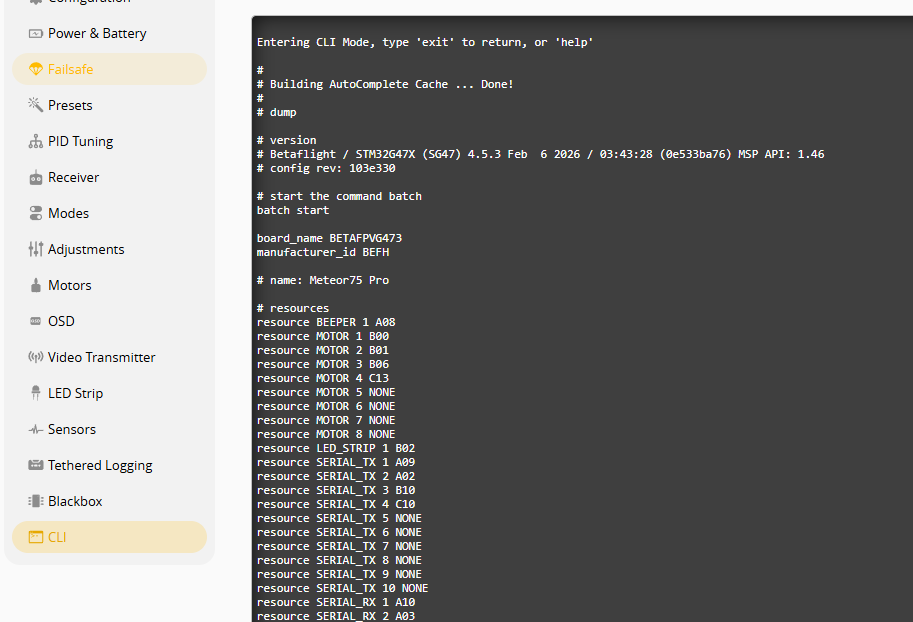

dump #exit

Then you save as .txt somewhere safe, in case you want to restore factory defaults.

Once the factory dump file is completely clean and officially safe, go ahead and type exit in the CLI box to restart the drone back to its regular mode.

Next up, let’s look at a couple of important lines from the dump you shared:

set serialrx_provider = CRSF
aux 0 0 0 1700 2100 0 0

This confirms two things:

1. Serial ELRS is perfectly ready: The communication is set to CRSF (Crossfire protocol, which ExpressLRS uses natively to talk to the flight controller).
2. Arming Switch is Pre-configured: BetaFPV pre-configured your main Arming switch (aux 0) to activate when a channel value hits between $1700$ and $2100$.

Calibrate the pitch and roll:

Now, we can proceed with pairing your RadioMaster Pocket.

The Pocket uses two 18650 Li-ion cells wired in a series ($2\text{S}$).

• Fully Charged: $\approx 8.2\text{V}$
• Current Voltage ($7.7\text{V}$): This is the sweet spot! You have plenty of juice left.
• When to stop/charge: Land and charge the radio when it hits $6.4\text{V}$.

At $6.4\text{V}$, the internal cells sit around $3.2\text{V}$ each, which is the standard safety floor.

The radio has a built-in voice alarm that will start actively nagging you saying “Radio Battery Low” if it drops past this point.

Since it draws very little power compared to the drone, it will take many hours of flying to go from $7.7\text{V}$ down to $6.4\text{V}$.

Setting Up the Radio Link

With a Serial ELRS system, you can use the built-in Betaflight binding button:

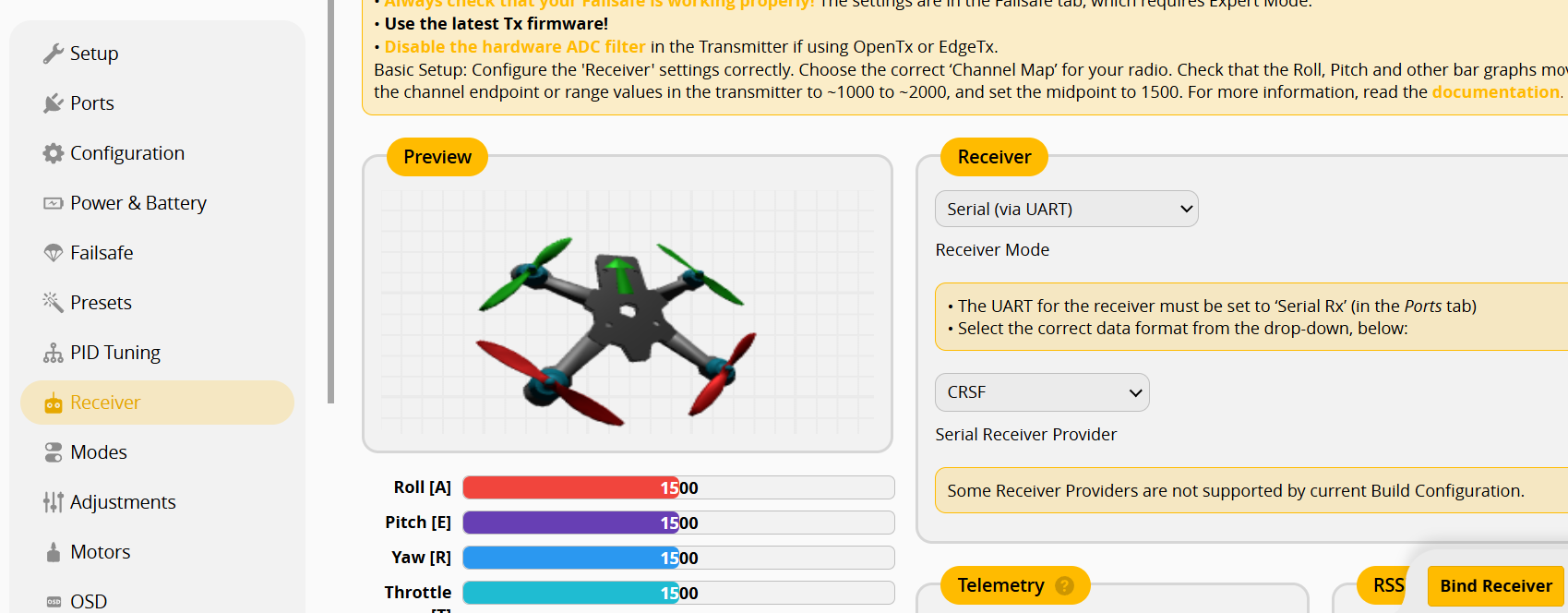

1. Click onto the Receiver tab on the left-hand menu of Betaflight.
2. Scroll down on the right-hand side and click the button labeled Bind Receiver. (The flashing green light on your drone will alter its pattern or freeze).
3. Turn on your RadioMaster Pocket.
4. Press the SYS button on the radio casing to pull up the system tools menu.
5. Select the ExpressLRS Lua script and click enter.
6. Scroll all the way down to the bottom of the internal radio menu and click [Bind].

If they link up successfully, the blinking green LED on the drone will instantly turn solid green.

Canbus electronics

Tried this with an outlander

I mean passive canbus sniffing!

With the Jhoinrch RH02 USB adapter and the XMSJSIY OBD2 pigtail cable currently in your cart, you have a perfect, fully complete hardware package to hack your fleet of cars.

Just a final quick layout checklist for when your package arrives on Tuesday:

1. Connecting the 3 wires

The terminal block order on the Jhoinrch RH02 is clearly marked right next to the green ports:

• CAN_H ➔ Connect to the wire from OBD Pin 6 - Green
• CAN_L ➔ Connect to the wire from OBD Pin 14 - Brown
• GND ➔ Connect to the wire from OBD Pin 4 or 5 - Yellow

When looking at your car connection you’ll see:

WIDER TOP SIDE
         _______________________________
        \  1   2   3  (4) (5) (6)  7   8  /
         \ 9  10  11  12  13 (14) 15 (16)/
          -------------------------------
                NARROWER BOTTOM

Withing the obd they are reversed, see the details next to your obd pins to do this properly:

sudo dmesg | tail -n 20

Which provided:

usb 1-1: Product: CANable2 b158aa7 github.com/normaldotcom/canable2.git
cdc_acm 1-1:1.0: ttyACM0: USB ACM device

According to these lines: Your adapter uses CANable 2 open-source firmware and is initializing as a virtual serial modem interface under ttyACM0.

This means it is running in slcan (serial CAN) mode.

This log output is perfect! It tells us exactly what firmware your Jhoinrch adapter is running under the hood.

According to these lines:

usb 1-1: Product: CANable2 b158aa7 github.com/normaldotcom/canable2.git
cdc_acm 1-1:1.0: ttyACM0: USB ACM device

Your adapter uses CANable 2 open-source firmware and is initializing as a virtual serial modem interface under ttyACM0.

This means it is running in slcan (serial CAN) mode.

Let’s initialize the network adapter link on your laptop right now so the software interface is completely ready for the car.

Step 1: Bind the Serial Device to a Linux Network Interface

We will use the slcand (Serial CAN Daemon) utility from can-utils to attach the serial port ttyACM0 to a network socket called can0, setting the speed to 500k ($500\text{ kbps}$), which is the standard speed for most modern car diagnostic buses.

Run this command in your terminal:

sudo apt update && sudo apt install can-utils -y
sudo slcand -o -c -s6 /dev/ttyACM0 can0

(Note: The -s6 flag specifies the 500,000 bits/sec speed).

Step 2: Bring the Network Interface Up

Now, tell Linux to activate the newly created network adapter interface:

sudo ifconfig can0 up

Step 3: Verify It’s Ready

To double-check that the interface is alive and configured properly, run:

ifconfig can0

You should see can0 listed in your terminal as an active network interface!

Since the device is not connected to a vehicle network yet, if you try to run a sniffing command like candump can0, the screen will stay blank because there are no electronic data frames passing through the wires yet.

can0: flags=193<UP,RUNNING,NOARP>  mtu 16

The UP and RUNNING flags mean your Linux system has successfully accepted the custom Jhoinrch hardware interface as a native network card.

Test locally before going to the car (Optional couch test)

If you want to absolutely prove the software layers can talk to the stick right now without leaving your seat, open up a second, separate terminal window and run this command to start listening:

candump can0

Then go back to your first terminal window and fire a fake packet into the void:

cansend can0 123#DEADBEEF

Because there is no car network connected to absorb or respond to the signal, your candump might stay quiet or the device might throw a silent internal transmit error.

But if you see anything pop up, your link is golden. (If nothing shows, don’t worry—CAN buses physically require at least two alive nodes on the circuit to acknowledge a packet).

Pack up the laptop, grab your custom cable, and head out to the vehicle—you are ready to connect to the OBD2 port!

Seeing that 123 [4] DE AD BE EF pop up in your other terminal is a beautiful sight!

It means your loopback/tx validation (via a functioning CAN node) is working perfectly on your laptop.

And you are exactly right about the car—depending on the model and year, you will see anywhere from 500 to well over 2,000 messages per second screaming across the screen.

It looks like a matrix waterfall and is impossible to read with the human eye.

Fortunately, the can-utils suite has a built-in tool specifically designed for recording this chaos so you can analyze it later on your couch.

How to Record 10 Seconds of Data

Instead of candump, you will use a tool called cangen or candump with logging flags.

The best tool for this job is candump combined with a timeout command.

To record exactly 10 seconds of raw car data and save it to a file, run this command in your terminal:

timeout 10s candump -l can0

What this command does:

• timeout 10s: Automatically stops the process and cuts the recording off after exactly 10 seconds.
• -l (Log flag): Tells candump not to print the text to the screen, but instead write it directly into a highly optimized log file.

When the 10 seconds are up, the command will exit, and you will find a new file in your current folder named something like: 📁 candump-2026-07-01_180449.log

How to “Play Back” the Recording on Your Couch

This is where the real hacking magic happens.

Once you have that log file saved, you can unplug from the car, go back inside, and replay those 10 seconds through your laptop as if you were still plugged into the live vehicle!

To replay your log file, use canplayer:

canplayer -I candump-2026-07-01_180449.log

(Just replace the filename with your exact log file name).

If you have candump can0 running in another window while you run canplayer, you will see all 10,000+ messages stream past your screen at the exact same speed and timing they happened inside the car.

This lets you isolate packet IDs, search for button presses, and reverse-engineer the data safely at your desk.

when youll be done:

sudo ip link set can0 down
sudo killall slcand

2. The 120Ω Switch (R120)

You will notice a tiny physical switch labeled R120 on the black plastic body.

• Set it to OFF. Since you are plugging directly into a fully functioning car network, the vehicle already has its own terminating resistors built into the computers. Adding another one can interfere with the signals.

3. Safely tuck away the rest

Make sure to insulate those remaining 13 loose wires from the pigtail cable with electrical tape—especially the 12V power line (Pin 16).

Once that’s done, pop the OBD2 connector into your vehicle, plug the USB port into your Linux laptop, fire up candump can0, and enjoy mapping out your dashboard metrics!

1. It is 100% Plug-and-Play on Linux

“Excellent USB-to-CAN FD adapter. Plug-and-play on Linux and works reliably for CAN communication.It comes pre-flashed with candlelight firmware and you can easily update it.”

This is the best part for you. Since it already has the native candlelight firmware installed, you don’t need to flash anything or mess around with Windows COM ports.

You just plug it into your laptop, use the standard Linux network commands (ip link), and can-utils will talk to it natively.

2. High Stability for Older and Newer Cars

Reviewers alex and Mr.Schmidt point out that it uses an external clock crystal (HSE) for high temporal stability and seamlessly supports standard CAN 1.0 and 2.0 up to 1 Mbps, alongside CAN-FD up to 5 Mbps.

This means it will downscale perfectly to read the 500 kbps signals on your Laguna, Outlander, Mondeo, or Golf 7 without dropping a single frame.

codex
#ip link
#can-utils

• https://github.com/Elmue/CANable-2.5-firmware-Slcan-and-Candlelight
• https://github.com/candle-usb/candleLight_fw

Outlander MK2 Test 1

That’s fine. You confirmed the laptop/CANable side works, so the remaining problem was vehicle-side.

For a Mitsubishi Outlander Mk2, the “nothing on candump” result could mean:

• The OBD port CAN pins you used were not carrying broadcast traffic.
• The car gateway keeps the diagnostic port quiet until queried.
• The bitrate was not 500k.
• The gear/selector signal is on another internal CAN bus, not exposed directly at OBD.
• If it was a manual gearbox, gear position may not be directly broadcast while stationary.

Next time you have access to the car, use this order:

sudo pkill slcand
sudo slcand -o -c -s6 /dev/ttyACM1 can0
sudo ip link set can0 up
candump -tz can0

Try with:

1. Ignition ON
2. Engine ON
3. Brake pressed
4. Gear selector moved slowly through states, if automatic/CVT

If still nothing, capture stats:

ip -details -statistics link show can0

Then try other passive bitrates:

#250k
sudo pkill slcand
sudo slcand -o -c -s5 /dev/ttyACM1 can0
sudo ip link set can0 up
candump -tz can0

#125k
sudo pkill slcand
sudo slcand -o -c -s4 /dev/ttyACM1 can0
sudo ip link set can0 up
candump -tz can0

For gear detection specifically, once frames appear, we’ll want short logs per state: P, R, N, D, 1, 2, etc.

Then we can diff changing CAN IDs/bytes.

Worked

• Linux detected the USB adapter:

  CANable2 b158aa7 github.com/normaldotcom/canable2.git Manufacturer: Openlight Labs ttyACM0 / later ttyACM1

• Confirmed it is a CANable2-style device running as USB serial ACM, suitable for slcan.

• Installed can-utils successfully:

  sudo apt install -y can-utils

• Loaded the correct kernel module after typo correction:

  sudo modprobe slcan

• Created can0 with slcand:

  sudo slcand -o -c -s6 /dev/ttyACM0 can0

  later after replug:

  sudo slcand -o -c -s6 /dev/ttyACM1 can0

• Brought can0 up:

  sudo ip link set can0 up

• Verified can0 was healthy:

  can0: <NOARP,UP,LOWER_UP> can state ERROR-ACTIVE

• Bench/local test worked between two terminals:

  candump can0 cansend can0 123#DEADBEEF

That proves the laptop, CANable, slcand, SocketCAN, and can-utils path works.

Did Not Work / Inconclusive

• Initial typo:

  sudo modprobe sclan failed because the module is slcan, not sclan. failed because the module is slcan, not sclan.

• After unplug/replug, can0 disappeared. That is normal; it needed to be recreated.

• My sandbox could see the adapter in sysfs but could not access /dev/ttyACM0 or /dev/ttyACM1, so I could not fully run slcand for you from here.

• Connected to the Mitsubishi Outlander Mk2, passive listening showed no frames:

candump -tz can0

Likely Reasons Nothing Came From The Car

• Ignition/modules may not have been awake.
• Wrong bitrate. We only confirmed 500k setup; 250k and 125k were suggested but not confirmed tried.
• OBD port may not expose raw broadcast CAN traffic.
• Gear data may be on another internal CAN bus behind a gateway.
• Wrong pins, missing ground, or CAN-H/CAN-L issue.
• The car may only respond to diagnostic requests instead of broadcasting on OBD.

Final Status

Your CAN adapter setup works locally. The unresolved part is vehicle access/traffic from the Outlander. Next time, the key checks are passive candump at 500k, then 250k, then 125k, plus ip -details -statistics link show can0 to see whether it is silence or bus errors.

Tried and Still No Frames

• can0 was up and healthy:

  <NOARP,UP,LOWER_UP> can state ERROR-ACTIVE

• Passive listen at 500k:

  candump -tz can0

  Result: no frames.

• Restarted slcand at 250k:

  sudo pkill slcand sudo slcand -o -c -s5 /dev/ttyACM1 can0 sudo ip link set can0 up candump -tz can0

  Result: no frames.

One correction: you accidentally ran slcand twice here:

sudo slcand -o -c -s5 /dev/ttyACM1 can0 sudo slcand -o -c -s5 /dev/ttyACM1 can0

That usually is not helpful, but since you later did ip link set can0 up, the 250k attempt was still basically valid.

The most useful thing missing was the statistics version:

ip -details -statistics link show can0

Your shown command was without -statistics, so we did not see RX/error counters.

Current conclusion: the adapter and can0 were fine, but the Outlander OBD port did not produce passive broadcast frames at the settings you tried.

Most likely: gateway quiet on OBD, wrong bus/pins, or gear data not exposed there.

#ip -details link show can0
18: can0: <NOARP,UP,LOWER_UP> mtu 16 qdisc pfifo_fast state UP mode DEFAULT group default qlen 10
    link/can  promiscuity 0  allmulti 0 minmtu 0 maxmtu 0
    can state ERROR-ACTIVE restart-ms 0
	  bitrate 0
	     [   10000,    20000,    50000,   100000,   125000,   250000,
	        500000,   800000,  1000000 ]
	  clock 0 numtxqueues 1 numrxqueues 1 gso_max_size 65536 gso_max_segs 65535 tso_max_size 65536 tso_max_segs 65535 gro_max_size 65536

Partly helpful. It confirms the laptop side was okay:

can0 is UP LOWER_UP can state ERROR-ACTIVE

That means slcand created the interface and the CAN controller was not in BUS-OFF or an obvious error state.

But it does not show whether any frames or errors were received. For that, the more useful command is:

ip -details -statistics link show can0

The missing -statistics part would show counters like:

RX: bytes packets errors dropped TX: bytes packets errors dropped

That would tell us:

• RX packets = 0, errors = 0: no traffic reaching adapter.
• RX packets = 0, errors increasing: likely wrong bitrate/wiring.
• RX packets > 0: traffic existed, and we need to check how candump was run.

Your output still supports the current conclusion: the CANable setup was healthy, but the car/OBD side did not expose passive traffic at the time.

You had:

CANable2 detected ttyACM0 / ttyACM1 can0 created can0 UP, LOWER_UP can state ERROR-ACTIVE bench test with candump + cansend worked

So I would not suspect the USB adapter or Linux setup first.

Yes, the next thing to check is the cable mapping.

For standard OBD2 high-speed CAN:

OBD pin 6 = CAN-H OBD pin 14 = CAN-L OBD pin 4 or 5 = Ground

Make sure your CANable wiring matches:

CANable CAN-H -> OBD pin 6 CANable CAN-L -> OBD pin 14 CANable GND -> OBD pin 4 or 5

Also check:

• CAN-H and CAN-L are not swapped.
• Ground is connected.
• The DB9/screw-terminal pinout for your CANable cable is actually what you think it is.
• You are not accidentally using OBD pin 16 power as signal or ground.
• If your adapter has a termination jumper/switch, avoid adding termination on a real vehicle OBD bus unless you know it is needed. Vehicle CAN is already terminated internally.

Given your results, cable mapping or vehicle gateway behavior are the top suspects.

candump -tz can0

If nothing:

ip -details -statistics link show can0

Then try a standard scanner/ELM327 on the same OBD port.

If the scanner reads RPM, the port is alive and your passive sniffing is likely blocked by gateway behavior. If the scanner also fails, suspect OBD port, fuse, pin contact, or ignition state.

That’s useful. It means the OBD port, vehicle power, ground, and at least one diagnostic path were working with a normal scanner.

So your situation narrows down to this:

• Your CANable/Linux setup worked locally.
• Your cable mapping sounds correct.
• The car’s OBD port can answer diagnostic tools.
• But passive candump saw nothing.

Most likely explanation: the Outlander’s OBD CAN is quiet until queried, or the gateway does not forward normal broadcast traffic to the OBD connector.

A normal scanner does not just listen. It sends diagnostic requests like “give me RPM,” and the ECU replies. Passive candump will not show those replies unless some other device is making requests at the same time.

Next time, useful passive test:

1. Connect CANable and run:

   candump -tz can0

2. At the same time, plug/use a scanner app if possible.

If your CANable is correctly connected to the same diagnostic CAN, you may see the scanner’s request/response frames appear while the scanner reads RPM.

The more direct next step is to send a standard OBD request from the CANable, but that is active traffic. Safer than random cansend, but still not passive. Example for RPM on 11-bit OBD CAN is usually:

cansend can0 7DF#02010C0000000000

Expected response would be from something like 7E8:

7E8 … 04 41 0C …

I would only do that after verifying can0 is up and you’re comfortable sending a standard diagnostic request. It’s normal OBD scanner behavior, not arbitrary control traffic.

Conclusions

Consulting Services

Consulting - Bring AI to your workflow

DIY via ebooks

Distilled free value!

For your use case I’d split it by adapter type:

For the CANable Use SavvyCAN first.

It is a Qt desktop CAN tool for capturing, saving, visualizing, reverse engineering, and debugging CAN frames, and it supports Qt SerialBus drivers including socketcan, which matches your can0 setup. See https://github.com/collin80/SavvyCAN

Workflow would be:

sudo slcand -o -c -s6 /dev/ttyACM1 can0
sudo ip link set can0 up
SavvyCAN

Then connect SavvyCAN to socketcan / can0.

This is better than staring at raw candump when frames are flowing.

Also keep using can-utils: candump, cansniffer, cansend, canplayer. The official can-utils project is the standard Linux SocketCAN userspace toolkit. (github.com (https://github.com/linux-can/can-utils))

For ELM327 For Linux specifically, I’d use python-OBD or a serial terminal first, not a heavy desktop app. python-OBD works with ELM327 adapters and can query normal OBD-II values like RPM, speed, coolant temp, throttle, VIN, etc.

• https://github.com/brendan-w/python-OBD

Quick test:

pip install obd
python3

import obd
c = obd.OBD()
print(c.query(obd.commands.RPM))
print(c.query(obd.commands.SPEED))

For a GUI OBD app, OBD Auto Doctor is decent, but current official downloads are Windows/macOS/mobile, not Linux.

It supports ELM327-type adapters and real-time sensor data, but on your Linux laptop it may not be the best fit unless you run it elsewhere.

https://www.obdautodoctor.com/download

My recommendation: next time take CANable + SavvyCAN for passive raw CAN work, and ELM327 + python-OBD for normal RPM/speed/diagnostic checks.

Keep them conceptually separate.

https://jalcocert.github.io/JAlcocerT/electromagnetism-101/#what-actually-happens-in-the-valve

https://github.com/JAlcocerT/hermesagent/tree/tinker/hermesagent/electronics-101

FAQ

This (\sigma(z) = \frac{1}{1 + e^{-z}}) is an inline expression.

then

$$F(\omega) = \int_{-\infty}^{\infty} f(t), e^{-j \omega t} , dt$$

more

$$ \begin{aligned} \nabla \cdot \mathbf{E} &= \frac{\rho}{\varepsilon_0} \ \nabla \cdot \mathbf{B} &= 0 \ \nabla \times \mathbf{E} &= -\frac{\partial \mathbf{B}}{\partial t} \ \nabla \times \mathbf{B} &= \mu_0 \left( \mathbf{J} + \varepsilon_0 \frac{\partial \mathbf{E}}{\partial t} \right) \end{aligned} $$

$$ \begin{aligned} 2x + 3 &= 7 \ 2x &= 4 \ x &= 2 \end{aligned} $$

The logistic function: $$\sigma(z) = \frac{1}{1 + e^{-z}}$$

The Fourier Transform: $$F(\omega) = \int_{-\infty}^{\infty} f(t), e^{-j \omega t} , dt$$

IoT MQTT

https://jalcocert.github.io/JAlcocerT/data-driven-insulation-evaluation/#iot-walls-sun-and-heat-transfer

So:

• connected client from 192.168.1.15 = yes
• active Pico message traffic right now = not observed in the brief trace

If you want, I can keep a live trace running for longer or check the exact topic the Pico should be publishing to.

─────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────

› can you share with me the commands you run on the container to confirmed all that?

• Yes. These are the commands I ran from the host to confirm it:

docker ps –format ’table {{.Names}}\t{{.Image}}\t{{.Status}}\t{{.Ports}}' docker ps -a –format ’table {{.Names}}\t{{.Image}}\t{{.Status}}\t{{.Ports}}'

docker inspect -f ‘Status={{.State.Status}} Health={{if .State.Health}}{{.State.Health.Status}}{{else}}none{{end}} RestartCount={{.RestartCount}} StartedAt={{.State.StartedAt}}’ emqx docker logs –tail 40 emqx docker logs –since 1h emqx | tail -n 50 docker inspect -f ‘LogPath={{.LogPath}}’ emqx

docker exec emqx sh -lc ’ls -1 /opt/emqx/bin 2>/dev/null && echo — && /opt/emqx/bin/emqx_ctl status 2>/dev/null || true’ docker exec emqx sh -lc ‘/opt/emqx/bin/emqx_ctl help | sed -n “1,240p”’ docker exec emqx sh -lc ‘/opt/emqx/bin/emqx_ctl broker stats 2>&1 | sed -n “1,200p”’ docker exec emqx sh -lc ‘/opt/emqx/bin/emqx_ctl topics list 2>&1 | sed -n “1,200p”’ docker exec emqx sh -lc ‘/opt/emqx/bin/emqx_ctl retainer info 2>&1 | sed -n “1,120p”’ docker exec emqx sh -lc ‘/opt/emqx/bin/emqx_ctl retainer topics 1 1000 2>&1 | sed -n “1,200p”’ docker exec emqx sh -lc ‘/opt/emqx/bin/emqx_ctl clients list 2>&1 | sed -n “1,200p”’ docker exec emqx sh -lc ‘/opt/emqx/bin/emqx_ctl subscriptions list 2>&1 | sed -n “1,200p”’ docker exec emqx sh -lc ‘/opt/emqx/bin/emqx_ctl clients show e66141040370772c 2>&1 | sed -n “1,200p”’ docker exec emqx sh -lc ‘/opt/emqx/bin/emqx_ctl clients show mqttjs_d61ad246 2>&1 | sed -n “1,200p”’ docker exec emqx sh -lc ‘/opt/emqx/bin/emqx_ctl topics show pico/temperature/dht22 2>&1 | sed -n “1,200p”’ docker exec emqx sh -lc ‘/opt/emqx/bin/emqx_ctl topics show pico/humidity/dht22 2>&1 | sed -n “1,200p”’

docker exec emqx sh -lc ‘/opt/emqx/bin/emqx_ctl trace start topic pico/temperature/dht22 /tmp/pico-temp.trace info json 2>&1 | sed -n “1,120p”’ sleep 5; docker exec emqx sh -lc ‘wc -c /tmp/pico-temp.trace 2>/dev/null; echo —; sed -n “1,120p” /tmp/pico-temp.trace 2>/dev/null’

docker exec emqx sh -lc ‘/opt/emqx/bin/emqx_ctl trace stop topic pico/temperature/dht22 >/dev/null 2>&1; /opt/emqx/bin/emqx_ctl trace start topic pico/# /tmp/pico-all.trace info json 2>&1 | sed -n “1,120p”’ sleep 5; docker exec emqx sh -lc ‘wc -c /tmp/pico-all.trace 2>/dev/null; echo —; sed -n “1,120p” /tmp/pico-all.trace 2>/dev/null’

A couple of the key ones:

• emqx_ctl clients list to see connected clients
• emqx_ctl topics list to see active topics in broker state
• emqx_ctl trace start topic … to watch live publishes

docker exec emqx sh -lc ‘/opt/emqx/bin/emqx_ctl clients list’ docker exec emqx sh -lc ‘/opt/emqx/bin/emqx_ctl topics list’ docker exec emqx sh -lc ‘/opt/emqx/bin/emqx_ctl trace start topic pico/# /tmp/pico.trace info json’

To check whether messages arrived after starting the trace:

sleep 5 docker exec emqx sh -lc ‘wc -c /tmp/pico.trace; echo —; sed -n “1,120p” /tmp/pico.trace’

To stop the trace:

docker exec emqx sh -lc ‘/opt/emqx/bin/emqx_ctl trace stop topic pico/#’

If you want a single command for live monitoring, I can give you a one-liner that loops and shows new trace output as it lands.

The usual way is to open a long-lived subscriber and keep it connected.

If you have mosquitto_sub installed:

mosquitto_sub -h 127.0.0.1 -p 1883 -t ‘pico/#’ -v

That will stay open and print every message on any pico/… topic.

Useful variants:

• All topics:

  mosquitto_sub -h 127.0.0.1 -p 1883 -t ‘#’ -v

• Only one sensor topic:

  mosquitto_sub -h 127.0.0.1 -p 1883 -t ‘pico/temperature/dht22’ -v

• Show connection/debug details:

  mosquitto_sub -h 127.0.0.1 -p 1883 -t ‘pico/#’ -v -d

If you need TLS on EMQX:

mosquitto_sub -h 127.0.0.1 -p 8883 –cafile ca.crt -t ‘pico/#’ -v

If mosquitto_sub is not installed, I can give you the equivalent using a container or another MQTT client.

I found it here:

• poc/iot-rpi-dht-insulation/ingester/data/readings.sqlite

What I verified:

• It has a readings table.
• It currently contains 40 rows.
• The newest rows are from 2026-06-07, including:
  • pico/temperature/dht22
  • pico/humidity/dht22
  • pico/temperature/internal
  • esp32/temperature/dht11
  • esp32/humidity/dht11

mosquitto_sub -h 127.0.0.1 -p 1883 -t 'pico/temperature/dht22' -v
mosquitto_sub -h 127.0.0.1 -p 1883 -t 'pico/humidity/dht22' -v

Tomatoes

After 2-2.5 months of been planted, the tomatoes started to take some other color than green.

At 3 months, they went from yellow shades to orange:

Tomatoes x Solar

Want a a micro-scale proof of concept for energy independence right on your balcony?

I got a elite 30 v2 battery which i can use with solar panels or as USP (SAI) for my home-lab.

Oh…and i can integrate it via mqtt:

• https://www.reddit.com/r/esp32/comments/xsv2zz/bluetti_db_bridge_a_esp32_based_bluetooth_and/
• https://github.com/SSMCD/bluetti2mqtt
• https://github.com/mariolukas/Bluetti_ESP32_Bridge

Solar x Travel

If you need sth more than software and a glm for workations.

You can repurpose this later on for your homelab / garden!

DC Boost vs Ram Pump

If you like analogies, here you have a practical one between fluids and electronics.

A DC boost does the oppositee of a buck converter, it tries to rise DC voltage

A ram pump does sth similar to the DC boost but with fluids!

Buck Converter

STM32G431 vs ESP32

The Jhoinrch RH-02 Plus I got uses an STM32G431 microcontroller chip (an ARM Cortex-M4 core).

While it is tempting to look at a powerhouse like the ESP32 (with its built-in dual-core processor, Wi-Fi, and Bluetooth) and think it would be better, the STM32 is chosen for a USB-to-CAN adapter for three massive reasons: native hardware CAN integration, ultra-low latency, and reliable USB clocking.

1. The Native CAN-FD Controller

To talk to a car, a microcontroller needs a dedicated internal hardware peripheral called a CAN Controller to manage the bit-timing, frame styling, and error-checking.

• The STM32G431: It has a built-in FDCAN controller right on the silicon. This hardware module natively understands both classic CAN 2.0 and the newer CAN-FD (up to 5 Mbps) standard. It handles the blistering pace of thousands of car messages per second at the hardware level without stressing the main CPU core.
• The ESP32: The classic ESP32 only has a built-in controller for classic CAN 2.0 (historically called the Twin Turbo CAN controller or SJA1000 clone). It does not support CAN-FD natively. While newer variants like the ESP32-H2 or ESP32-C6 include basic CAN functionality, their implementations are not as robust or high-performance as STM32’s dedicated automotive-grade silicon.

2. High-Speed Native USB Support (The Critical Flaw of ESP32)

Your adapter communicates with your laptop via USB.

The way a chip handles USB completely changes its latency.

• The STM32G431: It features a Native USB 2.0 Full-Speed device peripheral. The USB lines from your laptop plug directly into the pins of the STM32 chip. It handles the data transfer instantly, creating a pure, direct pipeline to the Linux kernel.

• The ESP32: The classic, most common ESP32 chip has no native USB hardware. If you see a micro-USB or USB-C port on an ESP32 board, it’s actually a completely separate, cheap USB-to-UART bridge chip (like the CH340 or CP2102) welded onto the side.

• The problem: The ESP32 has to talk to the bridge chip via serial (UART), and then the bridge chip talks to your laptop. This creates a massive data bottleneck and adds latency, causing the system to drop packets when your car’s CAN bus gets heavily saturated.

3. Timing Precision & FreeRTOS vs. Bare Metal

Car networks require microscopic timing precision. If a microcontroller delays a message by even a millisecond because it’s doing something else, it can cause sync issues.

• The STM32G431: It runs “bare-metal” or on ultra-light schedulers (like FreeRTOS). It uses a highly stable external crystal oscillator (HSE) as a heartbeat. When a CAN frame hits the chip, a dedicated hardware interrupt fires, processing the packet with absolute deterministic speed.

• The ESP32: Because it has to manage complex wireless stacks (Wi-Fi and Bluetooth), it runs a heavy operating system background layer. The wireless radios frequently cause internal interrupts that steal processing time. If the chip pauses for a fraction of a millisecond to maintain a Bluetooth link or search for a Wi-Fi network, it will miss incoming CAN frames.

The Takeaway: If you were building a standalone device to sit under the dash and text your phone when the car alarm goes off, the ESP32 wins hands down because of its wireless radios.

But because your goal is to sniff a raw firehose of high-speed data directly into a Linux terminal over a wire, the native USB and dedicated hardware CAN controller inside the STM32 chip make it vastly superior. You bought the mathematically correct chip for this specific job!

ELM327 vs STM

Understandable, but they are different kinds of devices.

Your CANable-style USB adapter is basically a raw CAN interface:

Linux/can-utils -> can0 -> CANable -> raw CAN frames

It lets you see/send CAN frames directly, but it does not automatically know OBD commands, protocols, headers, PIDs, or vehicle-specific meanings.

An ELM327 is more like an OBD interpreter/modem:

App -> ELM327 AT commands -> ELM327 sends OBD requests -> ECU replies -> ELM327 formats response

So when an app asks for RPM, the ELM327 handles the diagnostic conversation. It sends the request, receives the ECU reply, and presents it in a simpler way.

Roughly:

CANable: “Here are raw CAN frames. You figure out what they mean.”

ELM327: “Ask me for RPM, coolant temp, DTCs, etc. I’ll query the car.”

Your CANable can do what an ELM327 does, but only if you send the correct OBD diagnostic frames yourself or use software that speaks OBD over SocketCAN. Passive candump alone will not ask the ECU for RPM.

STM vs PicoW

Here is how the STM32G431 inside your USB adapter stacks up against the RP2040 chip inside the Raspberry Pi Pico W:

1. The Core Architecture (The Similarities)

Both chips are built by licensing processor blueprints from ARM.

• Raspberry Pi Pico W (RP2040): Uses two ARM Cortex-M0+ cores running at $133\text{ MHz}$. The Cortex-M0+ is ARM’s ultra-efficient, entry-level, low-power design.

• Your USB Adapter (STM32G431): Uses a single ARM Cortex-M4 core running at $170\text{ MHz}$.

Even though the Pico has two cores, the single core in your STM32 is vastly more powerful.

The Cortex-M4 architecture includes dedicated hardware for complex math processing (Floating Point Unit / FPU) and Digital Signal Processing (DSP).

It can crunch complex data calculations significantly faster than the Pico’s M0+ cores.

2. The Internal Network Hardware

This is where the chips split paths based on what they were designed to do:

• The STM32G431 is an Automotive/Industrial Specialist: STMicroelectronics designed the “G4” line specifically for digital power applications, motor control, and automotive networking.

Because of this, it has an advanced FDCAN hardware peripheral baked right into the silicon. It doesn’t need to use CPU processing power to monitor the CAN lines; the silicon handles it natively.

• The RP2040 is a General-Purpose Swiss Army Knife: The Raspberry Pi Foundation designed the RP2040 to be an amazing, flexible chip for general electronics hobbists. However, it does not have a CAN controller chip built into it.

If you wanted to use a Pico to talk to a car, you would have to buy an external chip module (like an MCP2515) and wire it up, or write highly complex software to fake a CAN controller using the Pico’s unique Programmable I/O (PIO) blocks.

You can think of the Pico W as the ultimate tool for wireless tinkering, smart-home automation, and connecting sensors to the internet.

But for your car project, where you need a chip that can sit directly on an industrial automotive network, withstand massive data bursts without flinching, and route them instantly to a native USB stream, the heavy-duty Cortex-M4 inside the STM32 is exactly the upgrade you want.

Yes, we were! Let’s bring it back to those 1S All-In-One (AIO) flight controllers for your indoor Whoop drone build.

To help visualize how the electronic brains of your drone connect compared to your solar project, here is the complete breakdown of the 1S AIO system.

How the 1S AIO Simplifies Your Build

An AIO board replaces a massive stack of separate components.

On a single tiny circuit board (like the BetaFPV F4 1S or HappyModel SuperX), you have everything built right into the fiberglass:

1. The Brain (STM32 MCU): Runs Betaflight to keep the drone stable.
2. The Gyro/Accelerometer: Measures the drone’s angles in the air.
3. The 4 ESCs (Speed Controllers): Drive the high-speed brushless motors.
4. The Receiver (ESP32 ELRS): Listens to your RadioMaster Pocket.
5. The VTX (Video Transmitter): Blasts the 5.8GHz camera feed into the room.

Easiest Way to Wire It (No-Solder Motor Plugs)

Because you want to avoid advanced micro-soldering, choosing the BetaFPV or HappyModel boards is a lifesaver.

Here is exactly what you connect when building it:

• The 4 Motors: They have tiny white plastic plugs on the ends of their wires. You literally just click them into the 4 pre-soldered sockets on the corners of the AIO board. (Zero soldering)

• The Battery Lead: The board comes with a pre-soldered power cable (usually a BT2.0 or PH2.0 connector) dangling off it. You just plug your 1S LiPo battery straight into it. (Zero soldering)

• The Caddx Ant Camera: This is the only part you solder. The camera has 3 wires: Power (+), Ground (-), and Video (Yellow). You solder these 3 wires to the clearly marked pads on the AIO board.

Once those 3 camera wires are soldered and the motors are plugged in, you screw the board onto your plastic indoor Whoop frame, snap the canopy on top, and plug it into your Linux PC to configure Betaflight!

• The Reality: PH2.0 is an old toy-drone connector style that has high electrical resistance. It causes “voltage sag,” meaning your drone thinks the battery is dead even when it isn’t.

• The Modern Way: Modern 1S flight controllers (like the BetaFPV or HappyModel ones we talked about) come with a BT2.0 connector pre-soldered right out of the box. You buy BT2.0 batteries (like the Tattu or BetaFPV Lava listed there) and plug them directly in. Buying adapters just adds dead weight and ruins your flight performance.

• The Caddx Ant Camera: Keep this. It remains the absolute king of budget analog cameras.

• The Whoopstor V3 Charger: This is the best 1S battery charger on the market. It safely charges six 1S batteries at once via USB-C, and more importantly, it has a “Storage” button. When you are done flying, it brings the batteries to a safe storage voltage so they don’t degrade or puff up over time.

• The Tattu or BetaFPV Lava Batteries: Excellent choices, but make sure you buy the ones with BT2.0 plugs natively on them.

Pocket and EdgeTX

• https://github.com/edgetx/edgetx

EdgeTX is the cutting edge open source firmware for your R/C radio

About J1962

The official name for the OBD-II port is the J1962 connector.

It was standardized back in 1966 so that environmental regulators could check any vehicle’s emissions system using a single tool.

Because it had to support dozens of car brands over the decades, the 16 pins are divided into three categories: The Standard Modern Pins (what you are using), The Legacy/Old Protocols (from before 2008), and Manufacturer Discretionary Pins (wildcards).

1. The Power & Ground Core (Your Essentials)

These pins are mandatory on every single car to keep the diagnostic tools alive and safe.

• Pin 4 — Chassis Ground: Connects straight to the bare metal frame of the car. It safely dumps heavy electrical noise from things like wipers and headlights.
• Pin 5 — Signal Ground: A clean, isolated electrical reference line running straight to the main vehicle computer (ECU). This is what you connected your Yellow wire to.
• Pin 16 — Battery Power (+12V): Tied directly to the vehicle’s battery. It has constant power even if the engine is completely off and the keys are out.

2. The Modern CAN Bus Network (Your Target)

Since 2008, all cars sold are legally required to use this specific pair of wires for emission tracking. This is the exact high-speed digital highway you are hacking into right now.

• Pin 6 — CAN High (CAN_H): The positive data stream line running at $500\text{ kbps}$. This is your Green wire.
• Pin 14 — CAN Low (CAN_L): The negative data stream line. It runs in an inverted loop to cancel out external electromagnetic interference. This is your Brown wire.

3. The Manufacturer Wildcards (Discretionary)

The regulatory bodies left these pins entirely unassigned. Car manufacturers can use them for whatever proprietary internal factory tasks they want.

• Pins 1, 3, 8, 9, 11, 12, 13: These are often empty, but if a wire is attached, it’s a dealer secret. For example, BMW often uses Pin 8 as a secondary K-Line for body electronics/infotainment, Ford uses Pin 3 for a secondary Medium-Speed CAN network, and some modern cars map these out to a hidden Ethernet line for fast flashing.

4. Legacy Diagnostic Protocols (The History)

Before CAN bus became the absolute king in 2008, different car companies used completely different physical languages to communicate. If you look inside older cars, you’ll find pins wired up here instead of pins 6 and 14:

• Pin 2 & Pin 10 (SAE J1850): Used mostly by older Ford (PWM method) and General Motors/Chrysler (VPW method) vehicles.
• Pin 7 & Pin 15 (ISO 9141-2 / K-Line): The old standard used by European and Asian imports up until the mid-2000s. Pin 7 (K-Line) handled bidirectional commands, while Pin 15 (L-Line) acted like an alarm clock to wake up the car’s computer before testing began.

Your custom interface maps exactly to pins 5, 6, and 14, which isolates the vehicle’s high-speed brain network while safely disregarding all the unneeded noise! Ready to make your trip to the vehicle cabin?
