How to make a Media Home Server with OSS

1. Jellyfin
2. emby
3. Plex
4. Kodi

You can use all these tools together with …

Jellyfin

https://github.com/jellyfin/jellyfin https://github.com/jellyfin/jellyfin?tab=GPL-2.0-1-ov-file#readme

The Free Software Media System

https://jellyfin.org/docs/general/installation/container/

• Official Image: https://hub.docker.com/r/jellyfin/jellyfin
• LinuxServer Image: https://hub.docker.com/r/linuxserver/jellyfin

https://fleet.linuxserver.io/

#version: '3.8'

services:
  jellyfin:
    image: lscr.io/linuxserver/jellyfin
    container_name: jellyfin
    environment:
      - PUID=1000
      - PGID=1000
      - TZ=Europe/Rome
    ports:
      - "8096:8096"
    volumes:
      - "~/Docker/Jellyfin:/config" #change it
      - "/home/youruserchangethis/Downloads:/data" #change it

https://github.com/awesome-jellyfin/awesome-jellyfin

Conclusions

Exploring the -arr Stack

FAQ

version: '3.8'

services:
  qbittorrent:
    image: ghcr.io/linuxserver/qbittorrent
    container_name: qbittorrent
    environment:
      - PUID=1000
      - PGID=1000
      - TZ=Europe/Madrid
      - WEBUI_PORT=6011
    volumes:
      - "/home/Docker/qbittorrent/config:/config"
      - "/home/jalcocert/Downloads:/downloads"
    ports:
      - 6081:6881
      - 6081:6881/udp
      - 6011:6011
    restart: unless-stopped

  metube:
    image: ghcr.io/alexta69/metube
    container_name: metube
    restart: unless-stopped
    ports:
      - "8081:8081"
    volumes:
      - "/home/jalcocert/Downloads:/downloads"

  jdownloader-2:
    image: jlesage/jdownloader-2
    container_name: jdownloader-2
    ports:
      - "5800:5800"
    volumes:
      - "/home/docker/jdownloader/appdata/jdownloader-2:/config:rw"
      - "/home/jalcocert/Downloads:/output:rw"

  radarr:
    image: lscr.io/linuxserver/radarr:latest
    container_name: radarr
    environment:
      - PUID=1000
      - PGID=1000
      - TZ=Etc/UTC
    volumes:
      - "/home/Docker/radarr/config:/config"
    ports:
      - 7878:7878
    restart: unless-stopped

Media Server with ARM64

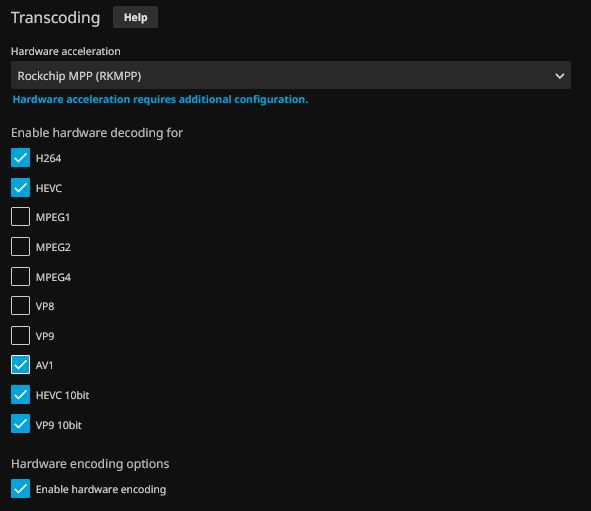

• what is the MPP? is the MPP the GPU? I also know it has an NPU, but this sounds like a GPU kind of job.

  • Rockchip Media Process Platform.
  • On ARM processors the GPU is not responsible for video decoding. There’s a VPU for doing such things.

• https://github.com/jellyfin/jellyfin-ffmpeg/pull/318

• https://github.com/jellyfin/jellyfin-ffmpeg/releases/tag/v6.0.1-2

It needs at least v10.2:

docker pull jellyfin/jellyfin:10.9.8 #example below

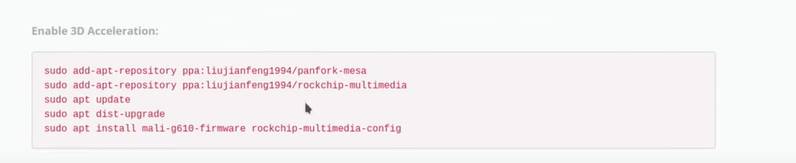

• Example on how to activate it - https://akashrajpurohit.com/blog/setup-jellyfin-with-hardware-acceleration-on-orange-pi-5-rockchip-rk3558/

cat /sys/kernel/debug/rkrga/load #see how the GPU is doing

• Add full HWA pipeline for Rockchip RK3588 platform allowing us to HW encoder (H264, HEVC) up to 1080p @ 480fps / 4k @ 120fps on RK3588

4K UHD, or Ultra High Definition, is a resolution standard in digital cinema and computing that offers significantly higher image definition than 1080p HD (High Definition).

The term “4K” refers to the horizontal resolution, which is approximately ~4,000 pixels.

Specifically, the standard resolution for 4K UHD is 3840 x 2160 pixels, which is exactly four times the pixel count of Full HD (1920 x 1080), resulting in sharper and more detailed images.

• Standard Definition (SD):

  • 480p (720 x 480 pixels): Often referred to as SD, this is the standard resolution for DVD videos.

• High Definition (HD):

  • 720p (1280 x 720 pixels): Known as HD or HD Ready, it offers significantly better detail than SD.
  • 1080p (1920 x 1080 pixels): Also referred to as Full HD or FHD, this resolution is standard for Blu-ray discs and many HDTVs.

• Ultra High Definition (UHD):

  • 4K UHD (3840 x 2160 pixels): Often simply called 4K, this resolution provides four times the pixel count of 1080p.
  • 8K UHD (7680 x 4320 pixels): Known as 8K, it offers four times the pixels of 4K and sixteen times that of 1080p, providing extremely detailed images.

• Digital Cinema Initiatives (DCI) resolutions (used primarily in film production and digital cinema):

  • 2K (2048 x 1080 pixels): Slightly wider than 1080p, used mainly in digital movie projection.
  • 4K DCI (4096 x 2160 pixels): A professional cinema standard that is slightly wider than consumer 4K UHD.

• Wide Quad HD (WQHD):

• 1440p (2560 x 1440 pixels): Also known as QHD or Quad HD, this resolution is common in higher-end computer monitors and mobile devices, offering sharper images than 1080p.

Ebooks

• Calibre
• https://gitlab.com/smoores/storyteller

Other Containers

• https://github.com/IgnisDa/ryot

GPL 3.0 | Ryot is a versatile platform that helps you effortlessly track and manage your media, fitness, and more. Say goodbye to manual tracking methods like Notion, Google Notes, and Excel.

1. Prowlarr

#https://docs.linuxserver.io/images/docker-prowlarr/ #https://wiki.servarr.com/ # —> SEEDBOX #https://docs.linuxserver.io/images/docker-prowlarr/#usage

---
version: "2.1"
services:
  prowlarr:
    image: lscr.io/linuxserver/prowlarr:latest
    container_name: prowlarr
    environment:
      - PUID=1000
      - PGID=1000
      - TZ=Etc/UTC
    volumes:
      - /home/Docker/prowlarr/config:/config
    ports:
      - 9696:9696
    restart: unless-stopped

2. amule

#https://github.com/ngosang/docker-amule

---
version: "2.1"
services:
  amule:
    image: ngosang/amule
    container_name: amule
    environment:
      - PUID=1000
      - PGID=1000
      - TZ=Europe/London
      - GUI_PWD=<fill_password>
      - WEBUI_PWD=<fill_password>
      - MOD_AUTO_RESTART_ENABLED=true
      - MOD_AUTO_RESTART_CRON=0 6 * * *
      - MOD_AUTO_SHARE_ENABLED=false
      - MOD_AUTO_SHARE_DIRECTORIES=/incoming;/my_movies
      - MOD_FIX_KAD_GRAPH_ENABLED=true
      - MOD_FIX_KAD_BOOTSTRAP_ENABLED=true
    ports:
      - "4711:4711" # web ui
      - "4712:4712" # remote gui, webserver, cmd ...
      - "4662:4662" # ed2k tcp
      - "4665:4665/udp" # ed2k global search udp (tcp port +3)
      - "4672:4672/udp" # ed2k udp
    volumes:
      - /home/Docker/aMule:/home/amule/.aMule
      - /home/Downloads/amule:/incoming
      - /home/Docker/temp/amule:/temp
    restart: unless-stopped
