adguard, Unbound, pihole…?

https://www.youtube.com/watch?v=9buji0Vnbo0 https://www.youtube.com/watch?v=H-tPCwxdxpY

https://raspberrytips.com/openwrt-on-raspberry-pi/

sudo apt install -y nmap arp-scan tcpdump

TL;DR

http://192.168.1.2:3034/hermesagent/pi-connectivity

gosolar-spain tmux new -s claude-gosolar-spain

sudo apt install libssl-dev libcurl4-openssl-dev libsqlite3-dev libz-dev autoconf automake libtool pkg-config libmosquitto-dev libwebsockets-dev mosquitto mosquitto-clients

#tmux new -s claude-pi
#tmux attach -t claude-pi #http://192.168.1.2:3034/hermesagent/pi-connectivity.git
#forgejo-home:hermesagent/pi-connectivity.git (which is 192.168.1.2:2235, user git, key ~/.ssh/id_ed25519_forgejo). It's currently empty —
claude --dangerously-skip-permissions

Saved at ~/wifi-tr181-notes.md (~9 KB). It covers:

1. Reading your own Wi-Fi state (iwconfig, iw dev wlan0 link, survey, scan) with the RSSI / band / channel reference tables and your actual readings
2. TR-181 + BBF + USP — what each is, how they relate (vocabulary vs grammar)
3. The tr181-dump.sh script — what branches it covers, how to invoke it
4. Why OpenWrt + bbfdm/obuspa unlocks more data, and the hardware-vs-OS tradeoff
5. Seeing other devices’ RSSI — the three paths, nmap’s role and limits, monitor mode caveats on the Pi 4
6. A quick-reference command block at the end
7. Links to the relevant projects (BBF, obuspa, bbfdm, nexmon, OpenWrt)

You now have two artifacts in ~: the runnable tr181-dump.sh and the reference wifi-tr181-notes.md.

https://github.com/olalie/tapmap?ref=selfh.st#docker-linux-host-only https://olalie.github.io/tapmap/

Intro

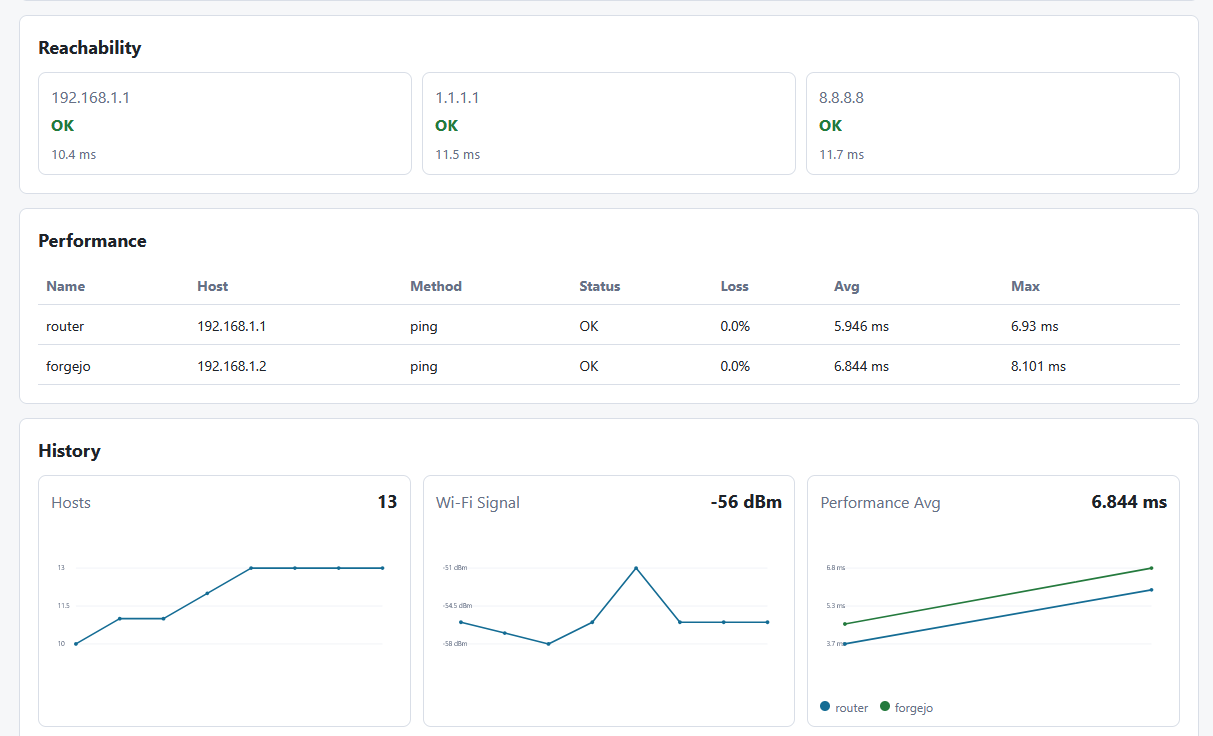

How good is your connection?

Bash(iwconfig 2>/dev/null | grep -E “ESSID|Signal|Quality”) ⎿ wlan0 IEEE 802.11 ESSID:“Piszymsiu”
Link Quality=63/70 Signal level=-47 dBm

● Yes — your Pi is connected to “Piszymsiu” with RSSI = -47 dBm (Link Quality 63/70, which is excellent — anything above -50 dBm is a strong signal).

A few ways to check it:

iwconfig wlan0 # quick one-shot iw dev wlan0 link # more detail (bitrate, freq, etc.) watch -n 1 ‘iwconfig wlan0 | grep Signal’ # live monitor cat /proc/net/wireless # raw kernel values For reference:

• -30 to -50 dBm → excellent - -50 to -60 dBm → good - -60 to -70 dBm → fair
• < -70 dBm → weak / unreliable ✻ Cogitated for 10s

Bash(iw dev wlan0 link) ⎿ Connected to 2c:ec:f7:4b:b5:a8 (on wlan0) SSID: Piszymsiu freq: 5500.0 … +8 lines (ctrl+o to expand)

● You’re on the 5 GHz band — frequency is 5500 MHz, which is channel 100 (UNII-2 Extended, DFS).

Quick reference:

• 2.4xx MHz → 2.4 GHz band - 5xxx MHz → 5 GHz band
• 6xxx MHz → 6 GHz (Wi-Fi 6E)

Bitrate of 433 Mbit/s confirms it’s an 802.11ac (Wi-Fi 5) link on an 80 MHz channel width.

Bash(iw dev wlan0 station dump | grep -E “signal|noise|tx bitrate|rx bitrate”; echo “—”; iw dev wlan0 survey dump | grep -A 6 “in use”) ⎿ signal: -50 dBm tx bitrate: 433.3 MBit/s rx bitrate: 433.3 MBit/s —

● Bash(sudo iw dev wlan0 survey dump 2>/dev/null | grep -A 8 “in use”) ⎿ No matches found

● Bash(sudo iw dev wlan0 survey dump 2>&1 | head -40) ⎿ sudo: a terminal is required to read the password; either use the -S option to read from standard input or configure an askpass helper sudo: a password is required

● Bash(iw dev wlan0 survey dump 2>&1 | head -60) ⎿ (No output)

● Here’s what I can confirm from the link info:

Channel: 5500 MHz = Channel 100 (5 GHz band, 80 MHz wide → spans channels 100–112). This is a DFS channel (radar-shared with weather/military radar). Noise floor: the iw survey dump command (which reports noise in dBm per channel) needs root on this Pi. To see it, run interactively:

! sudo iw dev wlan0 survey dump You’ll get output like: Survey data from wlan0 frequency: 5500 MHz [in use] noise: -95 dBm ← this is what you want channel active time: … channel busy time: …

SNR (Signal-to-Noise Ratio) = signal − noise. With your -49 dBm signal and a typical -95 dBm noise floor, SNR ≈ 46 dB → excellent (>40 dB is essentially the ceiling, sustaining max bitrates). If you want, you can also see all nearby APs and their channels/signals with: ! sudo iw dev wlan0 scan | grep -E “SSID|freq|signal”

! sudo iw dev wlan0 survey dump | grep -A 6 “in use” [sudo] password for jalcocert: jalcocert@jalcocert:~ $ ! sudo iw dev wlan0 scan | grep -E “SSID|freq|signal” | head -40 freq: 5500.0 signal: -50.00 dBm SSID: Piszymsiu * center freq segment 1: 106 * center freq segment 2: 0 freq: 5180.0 signal: -54.00 dBm SSID: Piszymsiu * center freq segment 1: 42 * center freq segment 2: 50 freq: 2462.0 signal: -63.00 dBm SSID: Piszymsiu freq: 5240.0 signal: -58.00 dBm SSID: 5G-FELIKS * center freq segment 1: 42 * center freq segment 2: 0 freq: 5200.0 signal: -83.00 dBm SSID: 5G-Vectra-WiFi-84D73A * center freq segment 1: 42 * center freq segment 2: 0 freq: 5180.0 signal: -56.00 dBm SSID: GibInternet * center freq segment 1: 42 * center freq segment 2: 0 freq: 5180.0 signal: -54.00 dBm * center freq segment 1: 42 * center freq segment 2: 50 freq: 5220.0 signal: -89.00 dBm SSID: Andaluzja_5G * center freq segment 1: 42 * center freq segment 2: 0 freq: 2412.0 signal: -55.00 dBm SSID: Bubu jalcocert@jalcocert:~ $

Nice data. The survey grep returned nothing (likely because iw on your driver formats it slightly differently — try without the filter: ! sudo iw dev wlan0 survey dump), but the scan is very informative.

Your AP “Piszymsiu” has 3 radios: ┌──────────┬─────────┬─────────────┬────────────────────────────┐ │ Freq │ Channel │ Band │ Signal │ ├──────────┼─────────┼─────────────┼────────────────────────────┤ │ 5500 MHz │ 100 │ 5 GHz (DFS) │ -50 dBm ← you’re connected │ ├──────────┼─────────┼─────────────┼────────────────────────────┤ │ 5180 MHz │ 36 │ 5 GHz │ -54 dBm │ ├──────────┼─────────┼─────────────┼────────────────────────────┤ │ 2462 MHz │ 11 │ 2.4 GHz │ -63 dBm │ └──────────┴─────────┴─────────────┴────────────────────────────┘

Neighboring networks: ┌──────────────┬─────────┬─────────┬──────────────────────────┐ │ SSID │ Channel │ Signal │ Notes │ ├──────────────┼─────────┼─────────┼──────────────────────────┤ │ GibInternet │ 36 │ -56 dBm │ overlaps your AP’s ch 36 │ ├──────────────┼─────────┼─────────┼──────────────────────────┤ │ 5G-FELIKS │ 48 │ -58 dBm │ nearby in 5 GHz low │ ├──────────────┼─────────┼─────────┼──────────────────────────┤ │ Bubu │ 1 (2.4) │ -55 dBm │ 2.4 GHz neighbor │ ├──────────────┼─────────┼─────────┼──────────────────────────┤ │ 5G-Vectra │ 40 │ -83 dBm │ weak │ ├──────────────┼─────────┼─────────┼──────────────────────────┤ │ Andaluzja_5G │ 44 │ -89 dBm │ very weak │ └──────────────┴─────────┴─────────┴──────────────────────────┘

Takeaways: - You’re on channel 100, 80 MHz wide (spans 100–112) with no other AP anywhere near it — that’s why you’re hitting 433 Mbit/s cleanly.

• The lower 5 GHz band (ch 36–48) is congested at your location — staying on ch 100 is the right choice.
• Your AP’s band-steering picked the best radio for the Pi. To also see the noise floor, try: ! sudo iw dev wlan0 survey dump (without the grep — paste the whole output and I’ll pull the noise figure for channel 100)

TR-181 is a standardized data model from the Broadband Forum (https://www.broadband-forum.org/) — specifically “TR-181: Device:2 Data Model for TR-069 Devices and USP Agents.” It defines a hierarchical tree of parameters that describe and control a network device (router, ONT, set-top box, etc.).

It’s transported by:

• TR-069 (CWMP) — older ISP remote-management protocol, used by an ACS server
• TR-369 (USP) — newer replacement, MQTT/WebSocket-based

Example paths (the same Wi-Fi data we’ve been looking at, but exposed as standardized parameters): Device.WiFi.Radio.1.OperatingFrequencyBand → “5GHz” Device.WiFi.Radio.1.Channel → 100 Device.WiFi.SSID.1.SSID → “Piszymsiu” Device.WiFi.AccessPoint.1.AssociatedDevice.1.SignalStrength → -50 ← RSSI Device.WiFi.AccessPoint.1.AssociatedDevice.1.MACAddress Device.DeviceInfo.SoftwareVersion Device.IP.Interface.1.IPv4Address.1.IPAddress

Why it matters for you: ISPs (Vectra, Orange, etc. — the kind of equipment around you) use TR-181 over TR-069 to:

• read your router’s status (RSSI of connected devices, channel, errors) - push config changes (Wi-Fi password, channel, firmware updates)
• diagnose your line remotely

So in essence: everything we just queried locally with iw and iwconfig is the same data your ISP can see on their side via TR-181 — just standardized into a vendor-neutral schema.

If you want to play with it yourself, open-source agents that implement TR-181 include OpenWrt’s easycwmp (https://github.com/pivasoftware/easycwmp) and obuspa (https://github.com/BroadbandForum/obuspa) (the BBF’s reference USP agent).

What you’ve got now (at ~/tr181-dump.sh):

• ./tr181-dump.sh — dump everything (no sudo needed)
• ./tr181-dump.sh –scan — also adds Device.WiFi.NeighboringWiFiDiagnostic.Result.* from a Wi-Fi scan (will prompt for sudo)
• ./tr181-dump.sh –filter Radio — only paths containing “Radio”

Notable findings from the dump:

• Pi 4B Rev 1.5, kernel 6.12.75, uptime ~4.7 days (403923s) - eth0 unplugged; you’re on Wi-Fi only - Connected to Piszymsiu BSSID 2c:ec:f7:4b:b5:a8, 5 GHz ch 100 / 80 MHz, RSSI -48 dBm, 433.3 Mbit/s both ways
• ~8.4 GB up / 1.66 GB down since boot, zero errors on wlan0 — healthy link
• Tailscale interface up (100.101.108.118), Docker bridge present

To grab neighbors too: ! ~/tr181-dump.sh –scan

What you’ve got now (at ~/tr181-dump.sh):

• ./tr181-dump.sh — dump everything (no sudo needed)
• ./tr181-dump.sh –scan — also adds Device.WiFi.NeighboringWiFiDiagnostic.Result.* from a Wi-Fi scan (will prompt for sudo)
• ./tr181-dump.sh –filter Radio — only paths containing “Radio”

Notable findings from the dump:

• Pi 4B Rev 1.5, kernel 6.12.75, uptime ~4.7 days (403923s) - eth0 unplugged; you’re on Wi-Fi only - Connected to Piszymsiu BSSID 2c:ec:f7:4b:b5:a8, 5 GHz ch 100 / 80 MHz, RSSI -48 dBm, 433.3 Mbit/s both ways
• ~8.4 GB up / 1.66 GB down since boot, zero errors on wlan0 — healthy link
• Tailscale interface up (100.101.108.118), Docker bridge present

To grab neighbors too: ! ~/tr181-dump.sh –scan

BBF — Broadband Forum (broadband-forum.org (https://www.broadband-forum.org/))

A non-profit industry consortium (ISPs, chipset vendors, router vendors, software vendors) that writes the standards for how broadband networks and customer-premises equipment are managed. Their specs are numbered “TR-xxx” (Technical Reports). Key ones you’ve now touched: ┌────────┬───────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────┐ │ Spec │ What it defines │ ├────────┼───────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────┤ │ TR-069 │ CWMP — the older protocol an ISP uses to remotely manage your router (over SOAP/HTTPS, polled) │ ├────────┼───────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────┤ │ TR-369 │ USP — the modern replacement for TR-069 (MQTT/WebSocket/STOMP, push-capable, supports IoT) │ ├────────┼───────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────┤ │ TR-181 │ The data model — the standardized tree of parameters (Device.WiFi.Radio.1.Channel, etc.) — used by both TR-069 and TR-369 │ ├────────┼───────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────┤ │ TR-143 │ Diagnostic tests (speedtest, ping, traceroute) — modeled as TR-181 parameters │ ├────────┼───────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────┤ │ TR-157 │ Software module management (firmware/component install) │ └────────┴───────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────┘ So: TR-181 is the vocabulary, TR-069 and TR-369 are two grammars for speaking it.

— USP — User Services Platform

The protocol defined in TR-369. It has two roles:

• USP Agent — runs on the device (your router, ONT, set-top, or in this case the Pi). It owns the device’s TR-181 data model and answers Get / Set / Operate / Add / Delete messages.
• USP Controller — runs at the ISP, in a cloud service, or even on your phone. It sends those messages to the Agent. Communication between them goes through a Message Transfer Protocol (MTP) — usually MQTT, WebSocket, or STOMP — with TLS and certificate-based auth. A typical exchange: Controller → Agent: Get Device.WiFi.SSID.*.SSID Agent → Controller: Device.WiFi.SSID.1.SSID = “Piszymsiu” Device.WiFi.SSID.2.SSID = “Piszymsiu-Guest” Controller → Agent: Set Device.WiFi.Radio.1.Channel = 36 Agent → Controller: OK Why USP replaced TR-069:
• TR-069 polls (the device asks the ACS “anything for me?” every ~hour) → slow
• USP is push-capable (Controller sends a message and Agent acts now) → real-time
• USP supports multiple Controllers (your ISP, and your own app, and a mesh-coordination Controller)
• USP is designed for IoT scale — IPv6, low-bandwidth, low-power devices
• USP uses Protocol Buffers (not the verbose SOAP/XML of TR-069)

The reference Agent implementation: OB-USP-AGENT (obuspa)
BBF publishes the official open-source USP Agent: https://github.com/BroadbandForum/obuspa (written in C, “OB” = Open Broadband). When earlier I mentioned option B was “build obuspa from source” — that’s the BBF reference Agent.

It gives you a real Agent process that:

1. Exposes a TR-181 data model
2. Talks USP over MQTT/WebSocket to a Controller 3. Has a CLI (obuspa -c get Device.) for local inspection

The catch I mentioned: out of the box its data model is mostly stubs. Real router firmwares (Vectra, Orange, AVM Fritz!Box, Sagemcom…) ship a fork of obuspa where they’ve written the C code that maps each TR-181 parameter to their actual hardware drivers. The tr181-dump.sh we just wrote is essentially a tiny, read-only, shell-based version of what that vendor-specific layer does — but in 200 lines instead of tens of thousands.

Yes — substantially more, but it depends on which OpenWrt setup and what the device actually is (router vs station). Two orthogonal things matter:

1. The agent + mapper stack (software that fills TR-181 paths from live system state)
2. The hardware sources (what data even exists to map)

1. OpenWrt is the natural home for serious TR-181 stacks Stock OpenWrt has no TR-181, but it has the right substrate for one — uci (config), ubus (IPC), netifd (interface abstraction), hostapd (Wi-Fi events). The Broadband Forum / iopsys / prpl ecosystems plug straight into those. Available as opkg packages:

┌──────────────────┬─────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────┐ │ Package │ What it adds │ ├──────────────────┼─────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────┤ │ bbfdm │ The mapping layer — populates real TR-181 values from uci/ubus/sysfs. Maintained by iopsys, used by ISPs in production. │ ├──────────────────┼─────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────┤ │ bbf.dataelements │ Wi-Fi EasyMesh data elements (R2/R3) │ ├──────────────────┼─────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────┤ │ obuspa │ The actual USP Agent (USP/MQTT/WebSocket) — sits on top of bbfdm │ ├──────────────────┼─────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────┤ │ easycwmp │ TR-069/CWMP client (older protocol, same data model) │ ├──────────────────┼─────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────┤ │ prplmesh │ Multi-AP mesh / EasyMesh agent │ └──────────────────┴─────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────┘

With bbfdm + obuspa installed you’d actually run: obuspa -c get Device. …and see the full schema populated, including writable parameters. 2. What you’d see that we don’t see now

Concrete examples that go from “empty/missing in our shell script” → “populated with real values”:

┌─────────────────────────────────────────────────────────────────┬──────────────────────────────────────────────────────────────────────────────────────────────┐ │ Path │ Why it lights up on OpenWrt │ ├─────────────────────────────────────────────────────────────────┼──────────────────────────────────────────────────────────────────────────────────────────────┤ │ Device.WiFi.AccessPoint.{i}.AssociatedDevice.{i}.SignalStrength │ Pi-as-AP via hostapd — every connected client’s RSSI │ ├─────────────────────────────────────────────────────────────────┼──────────────────────────────────────────────────────────────────────────────────────────────┤ │ Device.WiFi.AccessPoint.{i}.AssociatedDevice.{i}.Stats.* │ Per-client byte/packet/retry counters from hostapd │ ├─────────────────────────────────────────────────────────────────┼──────────────────────────────────────────────────────────────────────────────────────────────┤ │ Device.Hosts.Host.{i}.* │ Every LAN host (DHCP + ARP), with hostname, IP, MAC, lease time │ ├─────────────────────────────────────────────────────────────────┼──────────────────────────────────────────────────────────────────────────────────────────────┤ │ Device.DHCPv4.Server.Pool.{i}.Client.{j}.* │ DHCP leases, served by dnsmasq │ ├─────────────────────────────────────────────────────────────────┼──────────────────────────────────────────────────────────────────────────────────────────────┤ │ Device.Firewall.Chain.{i}.Rule.{j}.* │ nftables rules as structured TR-181 │ ├─────────────────────────────────────────────────────────────────┼──────────────────────────────────────────────────────────────────────────────────────────────┤ │ Device.NAT.PortMapping.{i}.* │ Port-forwards from /etc/config/firewall │ ├─────────────────────────────────────────────────────────────────┼──────────────────────────────────────────────────────────────────────────────────────────────┤ │ Device.QoS.* │ SQM/cake settings │ ├─────────────────────────────────────────────────────────────────┼──────────────────────────────────────────────────────────────────────────────────────────────┤ │ Device.Routing.Router.{i}.IPv4Forwarding.{j}.* │ Full routing table │ ├─────────────────────────────────────────────────────────────────┼──────────────────────────────────────────────────────────────────────────────────────────────┤ │ Device.DSL.Line.* / Device.Optical.Interface.* │ WAN line stats — only if the device has DSL/GPON hardware │ ├─────────────────────────────────────────────────────────────────┼──────────────────────────────────────────────────────────────────────────────────────────────┤ │ Device.Services.VoiceService.* │ VoIP — only if there’s an FXS port │ ├─────────────────────────────────────────────────────────────────┼──────────────────────────────────────────────────────────────────────────────────────────────┤ │ Device.PeriodicStatistics.* │ Built-in time-series collection │ ├─────────────────────────────────────────────────────────────────┼──────────────────────────────────────────────────────────────────────────────────────────────┤ │ Device.* Operate methods │ Reboot(), FactoryReset(), IPPing(), TraceRoute(), Download() (firmware) — actually invokable │ ├─────────────────────────────────────────────────────────────────┼──────────────────────────────────────────────────────────────────────────────────────────────┤ │ Writable params │ Set Device.WiFi.Radio.1.Channel=36 actually changes the channel │ └─────────────────────────────────────────────────────────────────┴──────────────────────────────────────────────────────────────────────────────────────────────┘

vs. our current shell script which is read-only and ~50 parameters.

3. But the device matters more than the OS

┌──────────────────────────────────────────────────────────┬───────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────┐ │ Scenario │ TR-181 richness │ ├──────────────────────────────────────────────────────────┼───────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────┤ │ This Pi on Raspbian (station, no AP, no WAN modem) │ What our script already shows │ ├──────────────────────────────────────────────────────────┼───────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────┤ │ This Pi on OpenWrt + bbfdm (still station-only) │ Better — proper Agent, writable params, Hosts/DHCP/firewall trees — but still no AccessPoint clients, no DSL, no GPON. The Pi’s hardware ceiling caps it. │ ├──────────────────────────────────────────────────────────┼───────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────┤ │ Pi 4 as OpenWrt AP (USB Wi-Fi dongle in AP mode + bbfdm) │ Big jump — WiFi.AccessPoint.*, associated-device RSSI, mesh metrics │ ├──────────────────────────────────────────────────────────┼───────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────┤ │ ISP modem/router on stock OEM firmware │ Usually has TR-069 enabled (vendor-built obuspa fork), but locked — the ISP sees the data, you don’t │ ├──────────────────────────────────────────────────────────┼───────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────┤ │ ISP modem/router on OpenWrt + bbfdm │ The gold standard — DSL/PON line stats, voice, NAT, full client visibility, you own the data │ └──────────────────────────────────────────────────────────┴───────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────┘

4. Practical recommendation If your interest is learning the schema and seeing it filled in properly → install OpenWrt on a spare router (even a cheap TP-Link), add bbfdm + obuspa. ~1 hour of work, no migration pain on your Pi.

If your interest is monitoring your home network (clients, RSSI per device, line stats) → that data lives on your router, not your Pi. The Pi as a station can only see itself. Running OpenWrt + bbfdm on the box that’s actually the AP/gateway is where the goodies are. If you want, I can sketch what an OpenWrt install on a small router would look like, or extend the current Pi script with a few more interesting paths we can still pull locally (process table, Device.Users.User., Device.X_BROADCOM_COM_NetworkProperties.-style vendor extensions, etc.). ✻ Cogitated for 56s

nmap can’t see Wi-Fi/RSSI data for other devices — it’s an L3/L4 tool (IP, ports, services) and RSSI/band/noise are L1/L2 radio properties. There are three real paths to that information, with different tradeoffs: What nmap can do here It’s still useful for the inventory half of the question — “what devices exist on my LAN”: sudo nmap -sn 192.168.1.0/24 # ping/ARP sweep sudo arp-scan –interface=wlan0 –localnet # faster, ARP-only ip neigh show # whatever the kernel already learned You’ll get IPs, MACs, vendor names (from OUI). Zero radio info.

Path 1 — Ask the AP (the only one with the truth)

The AP is the only device that natively knows every client’s RSSI, band, bitrate, and association duration. Two ways to extract it: ┌───────────────────────┬─────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────┐ │ Your router │ How to get it │ ├───────────────────────┼─────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────┤ │ ISP-provided (Vectra) │ Log into http://192.168.1.1, look for “Connected devices” / “Wi-Fi status”. Usually shows band + signal bars; sometimes exact dBm. Locked-down UI — no SSH. │ ├───────────────────────┼─────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────┤ │ OpenWrt │ SSH in and run iwinfo phy0-ap0 assoclist or hostapd_cli all_sta. Exact dBm per client. Or via TR-181: obuspa -c get Device.WiFi.AccessPoint..AssociatedDevice..SignalStrength │ └───────────────────────┴─────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────┘ This is the only path that gives you the RSSI the AP sees from each client — which is the operationally meaningful number.

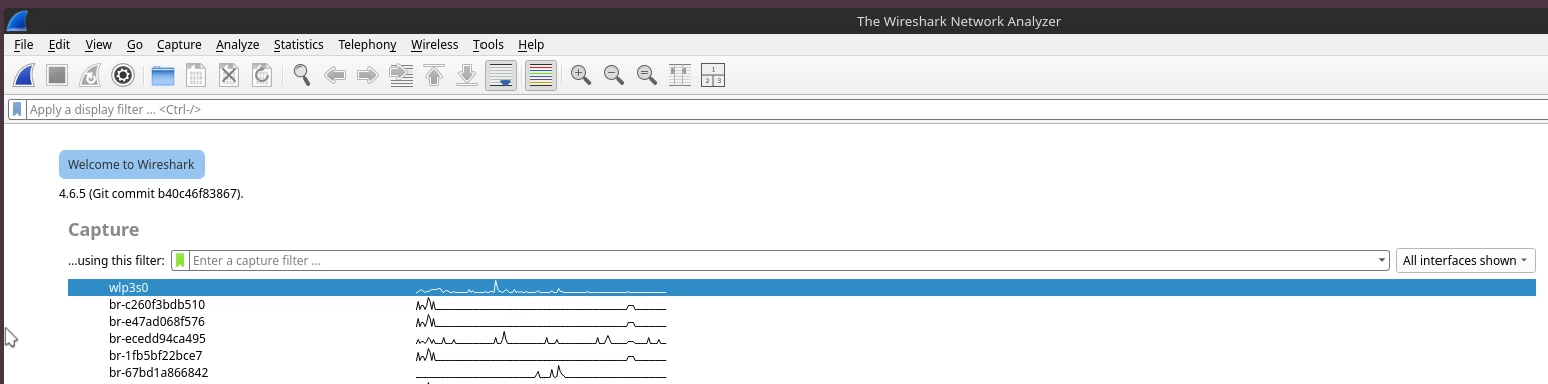

Path 2 — Sniff from the Pi in monitor mode

Put the Pi’s Wi-Fi into monitor mode and passively capture every frame in the air. You then see what the Pi hears of each device — not what their device hears of the AP, but a useful proxy if the Pi sits near the AP.

The Pi 4’s built-in Wi-Fi (BCM43455c0) needs the nexmon patched firmware for proper monitor mode: - https://github.com/seemoo-lab/nexmon Then: sudo airmon-ng start wlan0 sudo airodump-ng -c 100 –band a wlan0mon # watch channel 100 (where your AP is)

What you get per device per second:

• BSSID it’s associated with (→ which AP & SSID) - Channel / band (the channel you’re capturing on)
• Power = RSSI the Pi receives
• Frame rates, retries, encryption type, manufacturer

Caveat: monitor mode means the Pi can’t be a Wi-Fi client at the same time (single radio). You’d lose internet on wlan0 while sniffing. Workaround: a cheap USB Wi-Fi adapter with an Atheros/Ralink chipset (ALFA AWUS036 etc.) dedicated to monitor mode, keep wlan0 for normal use. Path 3 — Ask each client device (doesn’t scale)

Each device only knows its own RSSI to the AP. You’d need to SSH/agent into each one. Fine for a few Linux boxes (iw dev wlan0 link on each); not realistic for phones/IoT.

— Noise floor: same story

iw dev wlan0 survey dump only reports noise for the Pi’s own radio. Other devices’ noise floors are not visible to anyone but those devices (and the AP for its own channels). No protocol — TR-181 or otherwise — carries per-client noise from clients to neighbors.

— My recommendation for your setup

Your Vectra router is the bottleneck. Two pragmatic moves:

1. Check the Vectra admin UI at http://192.168.1.1 first — it likely already shows per-device RSSI/band, just hidden in a “device list” page. Zero effort.
2. If the UI is too limited and you want real numbers, the highest-leverage move is replacing or supplementing the Vectra router with an OpenWrt one. Then iwinfo + bbfdm give you everything: every client’s RSSI, band, capabilities, association history, in a queryable form.

Monitor mode on the Pi is fun and educational, but it’s a proxy measurement (what the Pi hears, not what the AP hears) — useful for surveys and detecting rogue devices, less useful for “is my kid’s phone getting bad Wi-Fi in their bedroom” (the answer to that lives on the AP).

Wi-Fi diagnostics & TR-181 on a Raspberry Pi — session notes

Notes from a session on a Raspberry Pi 4 Model B running Raspberry Pi OS, connected as a Wi-Fi client (station) to a home ISP router.

1. Reading your own Wi-Fi state

RSSI / signal strength

iwconfig wlan0

Sample output:

wlan0  IEEE 802.11  ESSID:"Piszymsiu"
       Link Quality=63/70  Signal level=-47 dBm

RSSI reference table:

Detailed link info (band, channel, bitrate, BSSID)

iw dev wlan0 link

Sample output:

Connected to 2c:ec:f7:4b:b5:a8 (on wlan0)
    SSID: Piszymsiu
    freq: 5500.0
    signal: -49 dBm
    rx bitrate: 433.3 MBit/s
    tx bitrate: 433.3 MBit/s

Band from frequency:

Frequency → channel (5 GHz): channel = (freq_MHz - 5000) / 5 So 5500 MHz = channel 100 (a DFS channel in UNII-2 Extended).

A bitrate of 433 Mbit/s indicates 802.11ac (Wi-Fi 5) on an 80 MHz channel.

Live monitoring

watch -n 1 'iwconfig wlan0 | grep Signal'
cat /proc/net/wireless           # raw kernel values

Noise floor and SNR

sudo iw dev wlan0 survey dump

Reports per-channel noise: -XX dBm. SNR = signal − noise. With -49 signal and a typical -95 noise floor, SNR ≈ 46 dB, which sustains the maximum bitrate the link can support.

Scan for neighboring APs

sudo iw dev wlan0 scan | grep -E "SSID|freq|signal" | head -40

Sample output interpretation (5 GHz neighborhood):

Reading: the AP is tri-band (2.4 / 5-low / 5-high) and band-steered the Pi to the cleanest radio (channel 100, no neighbors in the 80 MHz block 100–112).

2. TR-181 — the standardized device data model

TR-181 (“Device:2 Data Model for TR-069 Devices and USP Agents”) is a Broadband Forum specification. It defines a hierarchical tree of parameters describing a network device:

Device.DeviceInfo.ModelName
Device.WiFi.Radio.1.Channel
Device.WiFi.SSID.1.SSID
Device.WiFi.AccessPoint.1.AssociatedDevice.1.SignalStrength
Device.IP.Interface.1.IPv4Address.1.IPAddress

TR-181 is the vocabulary. Two protocols speak it:

USP is push-capable, multi-Controller, IPv6-native, uses Protocol Buffers, and is designed for IoT scale.

USP roles

• USP Agent — runs on the device. Owns the TR-181 model. Answers Get / Set / Operate / Add / Delete.
• USP Controller — runs at the ISP, a cloud service, or a local app. Sends those messages to Agents.

Reference Agent: obuspa

The Broadband Forum publishes the open-source reference USP Agent: github.com/BroadbandForum/obuspa (“OB” = Open Broadband). It provides the framework — the data-model tree, USP transport, local CLI — but most TR-181 leaves are stubs until vendor code wires them to actual Linux state. Commercial routers (Vectra, Sagemcom, AVM, etc.) ship a vendor fork with those mappings filled in.

3. Pragmatic local TR-181 dump (~/tr181-dump.sh)

A small bash script that queries live Linux state and emits the data using TR-181 parameter paths. Not a real Agent — just data shaped like TR-181 for inspection.

~/tr181-dump.sh                  # everything except scan
~/tr181-dump.sh --scan           # add NeighboringWiFiDiagnostic (sudo)
~/tr181-dump.sh --filter Radio   # only paths matching "Radio"

Covered branches:

• Device.DeviceInfo.* (model, kernel, serial, uptime, RAM)
• Device.Time.*
• Device.Ethernet.Interface.1.* + stats
• Device.IP.Interface.{i}.* with IPv4/IPv6 addresses
• Device.DNS.Client.Server.{i}.*
• Device.WiFi.Radio.1.* (band, channel, width, supported standards)
• Device.WiFi.SSID.1.* (SSID, BSSID, MAC, stats)
• Device.WiFi.EndPoint.1.* (signal strength, bitrates, profile)
• Device.WiFi.NeighboringWiFiDiagnostic.Result.{i}.* (with --scan)

4. Why OpenWrt unlocks far more TR-181 data

Stock OpenWrt has no TR-181 built in, but its substrate (uci, ubus, netifd, hostapd) is what the modern TR-181 stacks plug into. Available as opkg packages:

With bbfdm + obuspa, parameters that are empty on bare Raspbian get populated and become writable:

But hardware matters more than the OS. A Pi running OpenWrt as a station still has no DSL line, no GPON, no associated AP clients to report on. The richest TR-181 surface lives on a device that is the router and has real WAN hardware.

5. Seeing other devices’ Wi-Fi state from the Pi

Key constraint: RSSI, band, and noise are L1/L2 radio properties measured per-radio. No L3/L4 tool (nmap, ping, etc.) can read another device’s RSSI to its AP. Three real paths:

Path 1 — Ask the AP (the only one with the truth)

The AP is the only device that knows every client’s RSSI as the AP sees it.

Path 2 — Sniff from the Pi in monitor mode

The Pi captures all frames in the air and reads RSSI as the Pi hears each device (a proxy for the AP’s view, useful if the Pi sits near the AP).

The Pi 4’s built-in Wi-Fi (BCM43455c0) needs the nexmon patched firmware for proper monitor mode: github.com/seemoo-lab/nexmon.

sudo airmon-ng start wlan0
sudo airodump-ng -c 100 --band a wlan0mon   # watch channel 100

Caveat: monitor mode disables the station role on the same radio — the Pi loses Wi-Fi internet while sniffing. Workaround: a USB Wi-Fi adapter (ALFA AWUS036 and similar) dedicated to monitor mode.

Path 3 — Ask each client device

Each client knows only its own RSSI. Practical for a few Linux boxes (iw dev wlan0 link on each), not realistic for phones/IoT.

What nmap is and isn’t good for here

sudo nmap -sn 192.168.1.0/24                # ping/ARP sweep
sudo arp-scan --interface=wlan0 --localnet  # ARP-only, faster
ip neigh show                               # whatever the kernel already learned

Noise floor for other devices

Same story: iw dev wlan0 survey dump only reports noise for the Pi’s own radio. There is no protocol — TR-181 or otherwise — that carries per-client noise readings from other devices to neighbors.

6. Command quick reference

# Own Wi-Fi state
iwconfig wlan0
iw dev wlan0 link
iw dev wlan0 info
iw dev wlan0 station dump
cat /proc/net/wireless
sudo iw dev wlan0 survey dump

# Scan for neighbors
sudo iw dev wlan0 scan | grep -E "SSID|freq|signal"

# LAN inventory (no radio info)
sudo nmap -sn 192.168.1.0/24
sudo arp-scan --interface=wlan0 --localnet
ip neigh show

# TR-181 local dump
~/tr181-dump.sh
~/tr181-dump.sh --scan
~/tr181-dump.sh --filter Radio

# Monitor mode (requires nexmon on Pi 4)
sudo airmon-ng start wlan0
sudo airodump-ng -c 100 --band a wlan0mon

7. Reference links

• Broadband Forum: https://www.broadband-forum.org/
• TR-181 spec page: https://www.broadband-forum.org/technical/download/TR-181_Issue-2.html
• TR-369 / USP overview: https://usp.technology/
• obuspa (USP Agent): https://github.com/BroadbandForum/obuspa
• bbfdm (Linux→TR-181 mapper): https://dev.iopsys.eu/iopsys/bbfdm
• nexmon (Pi 4 monitor mode firmware): https://github.com/seemoo-lab/nexmon
• OpenWrt: https://openwrt.org/

cat lan-check.md

LAN Check — 192.168.1.0/24

Date: 2026-05-18 Host: Raspberry Pi (192.168.1.18 on wlan0) Method: ARP-based discovery (ping sweep + arp -an) and OUI vendor lookup via api.macvendors.com. No port scanning performed.

Network

• Subnet: 192.168.1.0/24
• Gateway: 192.168.1.1
• This host: 192.168.1.18 (wlan0), plus 100.101.108.118 (tailscale0) and 172.17.0.1 (docker0)

Discovered devices

11 active hosts. Reverse DNS and NetBIOS lookups returned nothing.

Hosts worth a closer look

Ranked by vendor reputation, not actual evidence of compromise.

1. .11 Sichuan AI-Link — Chinese IoT ODM (common in cheap WiFi cameras / smart devices). Frequently phones home to opaque cloud endpoints, rarely patched. Identify it first.
2. .12 Espressif — bare ESP32 MAC. Fine if intentionally deployed (Shelly, ESPHome, DIY); investigate if not recognized.
3. .9 SJIT — uncommon OEM. Treat like unknown IoT until identified.
4. .1 SDMC gateway — ISP boxes often ship with default admin creds and outdated firmware. Verify: firmware date, WAN-side admin disabled, UPnP off, WPS off.
5. .17 Versuni — Philips appliance spinoff (kitchen/health appliance). Smart-appliance firmware quality is generally poor.
6. .3 TP-Link — fine on current firmware; consumer line has had a steady stream of CVEs over the years.
7. .7 / .16 randomized MACs — normal for modern phones/laptops. Confirm both are accounted for (family devices) and not unknown.

What this check cannot tell you

• Which devices have open services (Telnet, old SMB, exposed admin UIs)
• Firmware versions / known CVEs
• Default-credential exposure
• Whether any device is actively communicating with suspicious endpoints

A port scan is required for any of the above.

Next steps

1. Identify the unknowns (no scanning needed)

• Check the router’s DHCP client list (admin UI on http://192.168.1.1) — many gateways show hostnames the devices reported.
• Power-cycle suspected IoT one at a time and watch which IP drops off (arp -an) to map IP → physical device.

2. Targeted, low-risk port scan

Install nmap and scan only the unknowns / suspicious hosts:

sudo apt-get install -y nmap
sudo nmap -sV -sC -p- --script=safe 192.168.1.9 192.168.1.11 192.168.1.12 192.168.1.17

Why these flags:

• -sV service/version detection
• -sC default NSE scripts (informational)
• -p- all 65535 ports (IoT often hides admin on odd ports)
• --script=safe excludes intrusive/DoS-prone scripts

Risk: low. Cheap IoT devices occasionally hang under version probes and need a power cycle. Scan one host at a time and watch it.

3. Escalate only if needed

If -sV reveals an interesting service (e.g., old HTTP server, exposed Telnet/RTSP), then run vuln scripts against that specific port:

sudo nmap --script=vuln -p <port> <ip>

Avoid --script=vuln on every host blindly — some checks can crash unpatched embedded services or trigger credential lockouts.

4. Network hygiene regardless of scan results

• Put IoT on a separate VLAN / guest network if the router supports it (isolates .11, .12, .17, possibly .9).
• Disable UPnP on the gateway.
• Disable WAN-side remote admin on the gateway.
• Change default credentials on every smart device.
• Block outbound traffic from IoT to the internet where the device doesn’t need it (router firewall rules).

5. Optional: ongoing monitoring

• arp -an weekly, diff against this baseline to spot new devices.
• Pi-hole or AdGuard Home as the LAN DNS resolver — gives visibility into what each IoT device is calling home to.

Wi-Fi and home networking

Q: What is EasyMesh? A Wi-Fi Alliance standard (originally 2018, currently R5) for multi-AP roaming inside a home. One “controller” AP coordinates several “agent” APs over a vendor-neutral protocol so a phone can hand off between them without dropping the connection. The agents share client metrics (RSSI, capability, load) with the controller, which decides when to steer a client to a better AP.

It rides on the older IEEE 1905.1 abstraction (a layer-2 control plane that spans Wi-Fi, Ethernet, MoCA, powerline). The data those agents and controller exchange is exposed in TR-181 under Device.WiFi.DataElements.* — so a USP Controller can read the full mesh topology + per-station metrics through the same channel it reads everything else. Reference impl: prplMesh (https://github.com/prplfoundation/prplMesh). A planned deeper note lives at notes/wifi-easymesh.md.

Q: SSID vs BSSID — what’s the difference?

SSID is the network name (the string you see in the Wi-Fi list).
BSSID is the MAC of the AP's radio for that network. One SSID can have many BSSIDs: dual-band APs use different BSSIDs per band, mesh networks use one per node per band, and enterprise SSIDs span dozens of BSSIDs across a building.

In our snapshot, “Piszymsiu” has three BSSIDs (one per band on the ISP’s tri-band gateway).

Q: Why does the AP know my RSSI better than I do? RSSI is asymmetric. The Pi measures the AP’s signal as the Pi hears it; the AP measures the Pi’s signal as the AP hears it. They’re often within a few dB but they can differ wildly when the AP has more TX power than the client (typical). The AP also sees every other station on its radio — the Pi only sees itself. That’s why Device.WiFi.AccessPoint.{i}.AssociatedDevice.{i}.SignalStrength exists only on the AP side of TR-181.

Q: What is DFS and why is channel 100 special? DFS (Dynamic Frequency Selection) channels in 5 GHz (52–144) are shared with weather/military radar. APs that use them must listen for radar pulses and vacate within seconds. Channels 100–144 (UNII-2 Extended) are wider and less crowded than the indoor-only UNII-1 (36–48), which is why the Pi was steered to channel 100 in our snapshot.

LAN discovery and MACs

Q: What is an OUI? Organizationally Unique Identifier — the first 24 bits of a MAC, assigned by the IEEE to manufacturers. 2c:ec:f7 → Shenzhen SDMC, 28:cd:c1 → Raspberry Pi Trading. The IEEE publishes the full mapping as a CSV. scripts/lan-inventory.sh looks them up via api.macvendors.com and caches results.

Q: Why do some MACs look “randomized”? Modern phones (iOS 14+, Android 10+) and many laptops join Wi-Fi networks with a locally administered MAC — the second-least- significant bit of the first byte is set to 1. The address is not in the IEEE OUI database because it’s generated per-network by the client to defeat tracking. lan-inventory.sh detects this bit and labels these as locally administered (randomized) without hitting the OUI API.

Q: What does ARP-based discovery miss?

Devices with no IP currently bound (sleeping, off, just-rebooted)
Hosts that don't answer ICMP echo (some IoT firmware drops it)
Hosts on a different VLAN / subnet
Hosts that talk only IPv6

would the pi with openwrt have more dkb tr181 fields than it currently has? could i deploy one of those easymesh agents?

● Short answer: yes to both, with caveats.

More TR-181 fields on OpenWrt — how much more?

Depends on what role the Pi plays.

┌────────────────────────────────────────────┬─────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────┬──────────────────────────────────────────────────┐ │ Role │ What you’d gain vs Raspbian today │ What stays empty │ ├────────────────────────────────────────────┼─────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────┼──────────────────────────────────────────────────┤ │ Pi as STA (still just a client) on OpenWrt │ Device.Hosts.Host., Device.Firewall., Device.NAT., Device.Routing., Device.DHCPv4.Client.* properly typed; a real USP Agent so leaves are writeable; LocalAgent.* for │ WiFi.AccessPoint., AssociatedDevice RSSI, │ │ + bbfdm + obuspa │ Controller/MTP/Subscription │ DSL/PON/MoCA, Voice │ ──── ├────────────────────────────────────────────┼─────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────┼──────────────────────────────────────────────────┤ │ Pi as AP/router (hostapd + dnsmasq, │ All of the above, plus Device.WiFi.AccessPoint. with config, Device.WiFi.AccessPoint..AssociatedDevice..SignalStrength for every client (the big one), Device.DHCPv4.Server.Pool..Client. │ DSL/PON line stats (no modem), MoCA, Voice │ │ OpenWrt as the gateway) │ from dnsmasq leases, Device.UPnP., Device.QoS. if you wire SQM │ │ └────────────────────────────────────────────┴─────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────┴──────────────────────────────────────────────────┘

The jump from “Pi as STA on OpenWrt” → “Pi as AP on OpenWrt” is bigger than the jump from “Raspbian” → “OpenWrt as STA”. The AP role is what unlocks per-client RSSI and the LAN client table — the things you’d actually want a Controller to read.

Hardware caveat: the Pi 4’s onboard Broadcom (BCM43455c0) supports AP mode under OpenWrt’s brcmfmac driver but is single-stream Wi-Fi 5 and not very reliable as a long-running AP. A USB adapter from the hardware.md shortlist (ALFA AWUS036ACH / NHA) gives a much better AP experience. Cleanest tup: setup: onboard radio = STA backhaul, USB radio = fronthaul AP.

EasyMesh agent — yes, but think about radios + Controller

Technically: opkg install prplmesh on OpenWrt/prplOS gets you a working EasyMesh R2/R3 Agent. The constraints:

1. One radio is awkward. EasyMesh wants a fronthaul AP (clients connect here) and a backhaul (uplink to another node). Same radio can’t do both well — beacons interfere with backhaul scans. The Pi 4’s onboard radio is single-radio, single-stream. Realistic minimum: one Pi + one USB Wi-Fi r, adapter, or two Pis.
2. You need a Controller somewhere. Options: - Same Pi running both Controller and Agent — perfectly fine for learning. prplMesh supports it. - A second OpenWrt box acting as Controller, your Pi as Agent. - Your ISP gateway as Controller — only if it speaks EasyMesh and lets you enrol third-party agents. Most ISP gateways do not.
3. No interop with consumer mesh kits. prplMesh ↔ Eero / Google / Plume is not a thing. You’d be building an all-prplMesh network.

Most useful setup for this repo: a spare Pi (or USB SSD on the same Pi for dual-boot) with OpenWrt + USB Wi-Fi adapter as AP, running prplMesh in both Controller and Agent role, with bbfdm + obuspa exposing the whole thing as TR-181. That’s the configuration that populates Device.WiFi.DataElements.* for real — and it’s already on the roadmap as notes/openwrt-tr181-lab.md (Phase 3 of plan.md).
